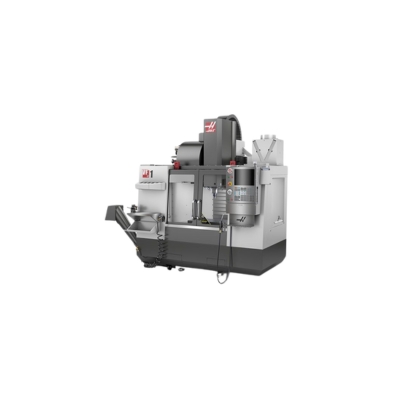

Haas VF-1
Vertical Machining Center |

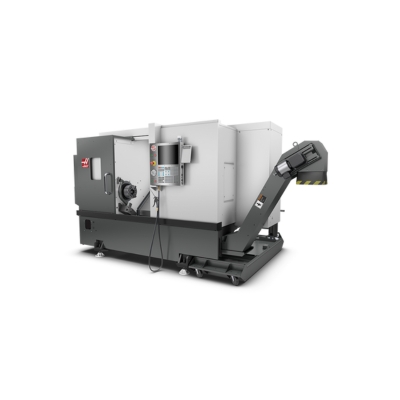

Haas ST-20Y
Turning Center Lathe
|
|
Vertical Machining Center; 20" x 16" x 20" (508 x 406 x 508 mm), 40 taper, 30 hp (22.4 kW) vector drive, 8100 rpm, inline direct-drive, 20-station carousel tool changer, 1000 ipm (25.4 m/min) rapids, 1 MB program memory, 15" color LCD monitor, USB port, memory lock key switch, rigid tapping and 55-gallon (208 liter) flood coolant system.
|
CNC Lathe w/Y Axis; 12" x 21" (305 x 533 mm) max capacity, 2.0" (51 mm) bar, 31.75" (806 mm) swing, ±2.00" (±50.8 mm) Y-axis travel, 20 hp (14.9 kW) vector drive, 4000 rpm, A2-6 spindle, 8.3" (210 mm) chuck, 12-station hybrid turret (6 VDI/6 BOT), high-torque live tooling w/C axis, 15" color LCD monitor, memory lock key switch, spindle orientation, USB port and rigid tapping. Standard tool holder kit included with Hybrid turret.
|
 |
 |

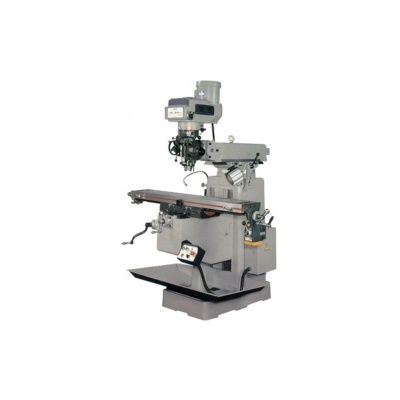

Mill Port 3VH (3 axis)
Vertical Milling Machine |

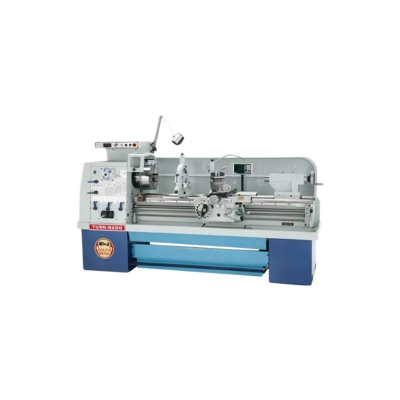

TURN-NADO EVS
Engine Lathe |
|
Spindle Taper R8. Spindle Speed 70-4500 RPM (Variable). Quill Diameter-3.375" inch/Quill Feeds-0.0015", 0.003", 0.006" inch. Head Tilt 45 Degree Front/Rear-90 Degree Right/Left. Spindle Motor 3 HP, 220/440V, 3 Phase/Table Size 9" x 49" inches. Longitudinal Travel "X" axis-37" inches/Cross Travel "Y" axis-12" inches. Vertical Travel "Z" axis-16" inches. Ram Travel-15" inches. Digital Read-Out (DRO) "X" and "Y" axis only.
|
South Bend 16" x 60" Vari-Speed Gap Bed Lathe. Serial No. 113CH - Model EVS. Swing Over Bed: 16-1/4"; Swing in Gap: 23"; Swing Over Carriage: 10-3/8". Center Distance: 60". Spindle Speeds: Var. 20 to 2500 RPM. Spindle Nose: D1-6" Camlock. Hole in Spindle: 2-1/16". Feeds and Threads: Inch/Metric. Motor: 7-1/2 HP and Complete Electrics. Complete With: 10" 3-Jaw/4-Jaw Chucks; 5C Collet Attachment; Digital Read-Out (DRO) “X” and “Z” axis only, Coolant system; Chip Pan, and Dorian Tool Block.
|
