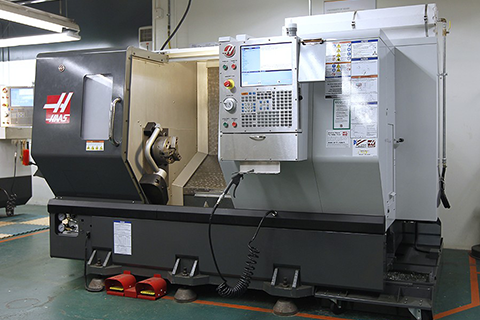

Haas ST-20Y CNC (Computer-Numerical-Control) Turning Center (Lathe)
With supple travel in the "Z" and "X" axis planes the CNC Turning Center can accommodate a favorable range of diameters and materials (with proper tooling). The Turning Center also benefits from "Live Tooling" or "Y" axis implementation that can provide additional horizontal and vertical planes of motion for drilling and/or milling operations to spindle mounted material.
ST-20Y Overview
CNC Lathe w/Y Axis; 12" x 21" (305 x 533 mm) max capacity, 2.0" (51 mm) bar, 31.75" (806 mm) swing, ±2.00" (±50.8 mm) Y-axis travel, 20 hp (14.9 kW) vector drive, 4000 rpm, A2-6 spindle, 8.3" (210 mm) chuck, 12-station hybrid turret (6 VDI/6 BOT), high-torque live tooling w/C axis, 15" color LCD monitor, memory lock key switch, spindle orientation, USB port and rigid tapping. Standard tool holder kit included with Hybrid turret.
